Masons Barricade FR Building Wrap

$58.15$170.36 excl. GST

Clear
SKU: BFRMPB1.37X100-1 Category:

Description

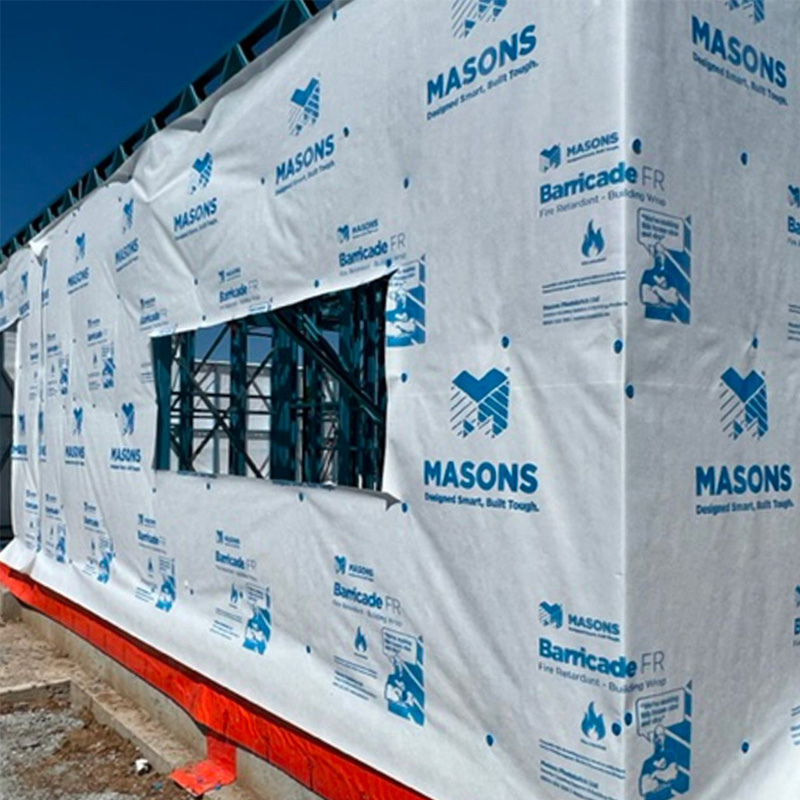

Barricade FR is a fire rated building wrap suitable for all frame and cladding systems with or without cavity and holds a Codemark Certificate.

Applications

  • Where a fire retardant wrap is required
  • Barricade FR is absorbent and can be used with absorbent and non-absorbent cladding
  • Barricade FR is strong and durable, suitable for all areas of New Zealand including up to ‘Very High’ wind zones of NZS 3604 and “Extra High” over rigid wall underlays.
  • Barricade FR is suitable for use with all cladding systems
  • Barricade FR performs over timber or steel framing.
  • Barricade FR is suitable to be used as a non rigid backing for stucco plaster
  • Barricade FR is suitable as an air barrier on walls that are not lined
  • May be used on gable ends
  • Vertical use only, not suitable as a roof underlay



New Zealand Building Code Standard (NZBC)

The following tests have been carried out in accordance with NZBC Acceptable Solution E2/AS1 Table 23:

  • Tensile strength, edge tear resistance and resistance to water vapour transmission in accordance with ASNZS 4200.1
  • Resistance to water penetration in accordance with AS/NZS 4201.1.4
  • Surface water absorbency in accordance with AS/NZS 4201.6
  • Air resistance to BS 6538.3
  • Shrinkage in accordance with AS/NZS 4201.3
  • pH of extract in accordance with AS/NZS 1301.421s
  • Fire retardant in accordance with AS1530 Part 2 Flammability

Physical Properties

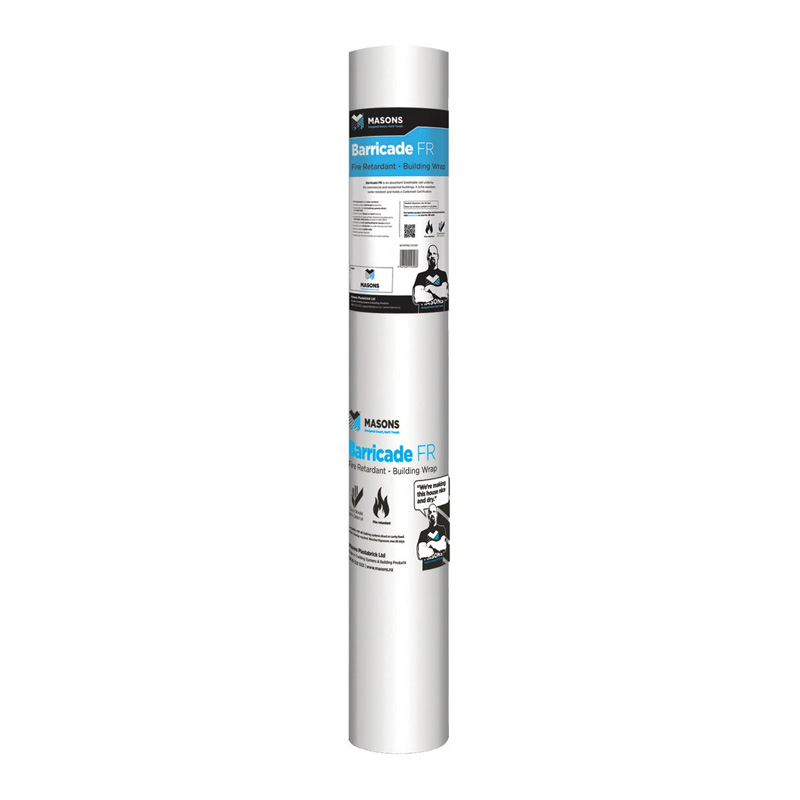

  • Barricade FR Wrap is a non-woven fire retardant, water resistant, breathable synthetic wall underlay for use under direct fixed and non- direct fixed wall cladding on timber framed and steel framed buildings. The product is manufactured from high quality synthetic spun bonded material with high UV qualities.
  • Barricade FR has unique anti fungal properties
  • Barricade FR resists UV exposure for up to 60 Days
